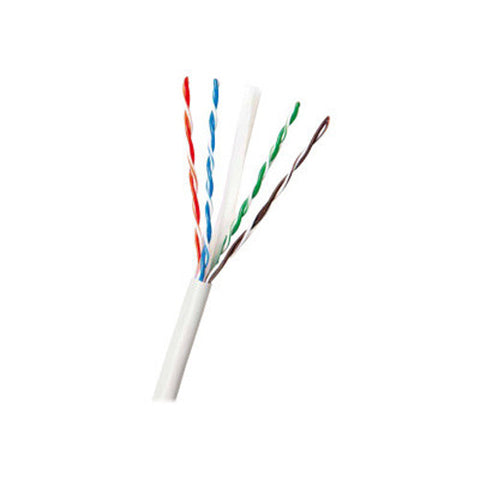

305M Grey 24AWG CAT6 Cable Reel-in-Box

Product Selection Menu

For stock availability and product enquiries.

11U06HA004T-GY3J |  305M Grey CAT6 U/UTP LS0H 4-Pair 24-AWG IEC 60332-1 Cable Reel-in-box - AT&T

Average ETA for Additional Units  Contact Us
Product Datasheet Download

AT&T CopperLine Category 6 U/UTP 100 Ohm Horizontal Indoor LAN Cables are designed to the highest standards in the industry.

This 4-Pair 24 AWG U/UTP CAT6 LS0H (Low Smoke Zero Hologen) IEC 60332-1 Cable is Grey in colour and conveniently packaged as a Reel-in-box.


  • 4-pair U/UTP cables
  • Frequency range: 1-250 MHz
  • Conductor: 24 AWG Solid bare copper
  • Insulation: PO
  • Color code: ANSI/TIA-568-C.2
  • Shield: None
  • Outer Diameter (OD): 5.5mm
  • Jacket: LS0H

Mechanical & Electrical Properties:

  • Pulling force: 50 N/mm2 max.
  • Short term bend radius: 8xOD mm
  • Long term bend radius: 4xOD mm
  • Operating temperature: -20 to +60C
  • Installation temperature: 0 to +50C
  • DC resistance: 93 Ohm/Km max.
  • Capacitance: 56 max. pF/m @ 1KHz
  • Voltage rating: 75 Vdc max.
  • Velocity of propagation (NVP): 69% nom.

Australian and International Standards Approved:

  • EIA/TIA 568-C.2
  • AS/NZS 3080
  • ACMA - AS/CA S008
  • RoHS Compliant
Part Number Product Description
11U06HA004T-GY3J 305M Grey 24AWG CAT6 Cable Reel-in-Box
