12-Fiber OM4 LS0H Indoor/Outdoor Tight Buffer Cable

Product Selection Menu

For stock availability and product enquiries.

23RM4HA012S-BK2N | 12-Fiber OM4 50/125 Micron LS0H Indoor/Outdoor Multi-Mode Tight Buffer Cable - AT&T

Average ETA for Additional Units  Contact Us
Product Datasheet Download

AT&T FiberLine Indoor/Outdoor Tight-Buffer Non-Armored Multi-Mode Optical Fiber LS0H Cables are designed to the highest standards in the industry.

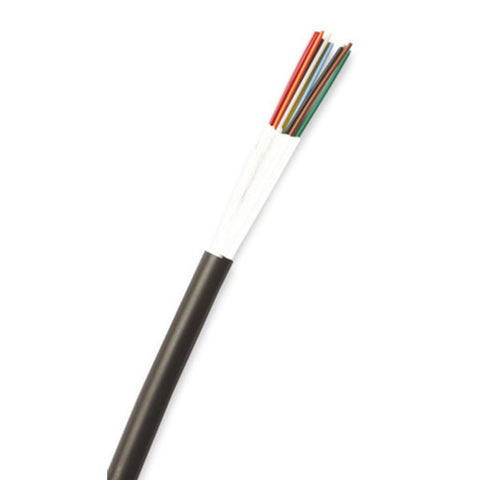

This 50/125 Micron OM4 LS0H (Low Smoke Zero Halogen) 12-Core Multi-Mode Fibre Cable is Black in colour and sold by the metre.

Specifications:

  • 2-144 fibers Indoor/Outdoor tight-buffer non-armored FO cables
  • Fiber type: 12-Fiber LS0H FO Indoor/Outdoor Tight-Buffer Cable
  • Buffer type: 900µ tight flame retardant LS0H coating
  • Strength elements: Served swellable aramid and glass yarn
  • Central strength member: Dielectric, in multi-unit cables only
  • Sub-units jacket material: Flame retardant LS0H compound
  • Multi-unit water blocking: Swellable tapes
  • Cable jacket material: Flame retardant LS0H UV-resistant compound
  • Fibers and sub-units color code: TIA-598-C
  • Jacket colour: Black

Mechanical & Electrical Properties:

  • Short term bend radius: 20xOD mm
  • Long term bend radius: 10xOD mm
  • Operating temperature: -20 to +60C
  • Installation temperature: 0 to +50C
  • Water blocking test: 3m cable, 1m water, 24h - IEC 60794-1-2 F5

Standard & EU Directives Conformance:

  • Relevant sections of ANSI/TIA-568-C.3
  • Relevant sections of ISO/IEC 11801
  • Relevant sections of EN 50173
  • IEC 60332-1 flame tests
  • IEC 60754 & IEC 61034
  • EU Directive 2011/65/EU (RoHS-2)
Part Number Product Description
23RM4HA012S-BK2N 12-Fiber OM4 50/125 Micron LS0H Indoor/Outdoor Multi-Mode Tight Buffer Cable - Price per Metre
