WHITE CAT6A S/FTP Patch Lead

Product Selection Menu

For stock availability and product enquiries.

CAT6A-xx-WH | White CAT6A S/FTP Patch Lead with Snag Free Connectors - Dueltek Computer Cables

Average ETA for Additional Units  Contact Us
Product Datasheet Download

Dueltek CAT6A patch leads are designed to meet the ANSI/TIA 568C.2 and ISO/IEC 11801 requirements, making them ideal for high-end transmission links which support today's network protocols.

The Dueltek CAT6A cable range has been designed with double shielding to insulate and prevent interference. Each individual twisted pair is foil shielded, before the entire cable bundle is wrapped with a additional braided wire shield.

The CAT6A (Category 6 Augmented) standard extends the frequency of CAT6A cables to 500 MHz, and includes specifications for a new performance parameter known as Alien Crosstalk (ANEXT). At these high speeds, cross talk (in particular ANEXT) may present significant issues to reliable operation and connectivity.

Designed for use with high-speed data applications including:

  • 10G BASE-T
  • 10BASE-T
  • 155 Mb/s ATM
  • 4/16 Mb/s Token Ring
  • Fully backward compatible with CAT6 and CAT5e.

Specifications:

  • 26AWG pure copper
  • 24K 50u" gold plated points
  • Flame retardant PVC Jacket
  • RJ45 8P8C male connectors at each end
  • Snag-Free Mouldings
  • 500 Mhz – 10GBASE-T Ready
  • Individual Foil Shielded Twisted Pairs
  • Overall Braid Wire Shield with drain wire
  • ANSI/TIA 568C.2 Compliant
  • Standards: ISO/IEC 11801 Compliant
  • RoHS Compliant
  • Telstra network fully compliant (A-Tick Approved)
Part Number Product Description
CAT6A-0.5-WH 50cm CAT6A S/FTP Double Shielded Patch Cable with Snagless Connectors - White
CAT6A-01-WH 1M CAT6A S/FTP Double Shielded Patch Cable with Snagless Connectors - White
CAT6A-02-WH 2M CAT6A S/FTP Double Shielded Patch Cable with Snagless Connectors - White
CAT6A-03-WH 3M CAT6A S/FTP Double Shielded Patch Cable with Snagless Connectors - White

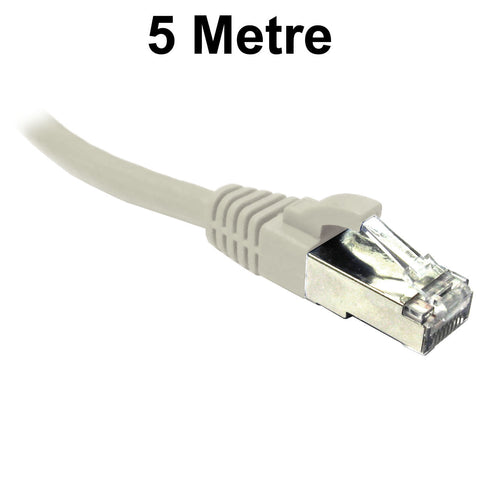

CAT6A-05-WH 5M CAT6A S/FTP Double Shielded Patch Cable with Snagless Connectors - White
CAT6A-10-WH 10M CAT6A S/FTP Double Shielded Patch Cable with Snagless Connectors - White
