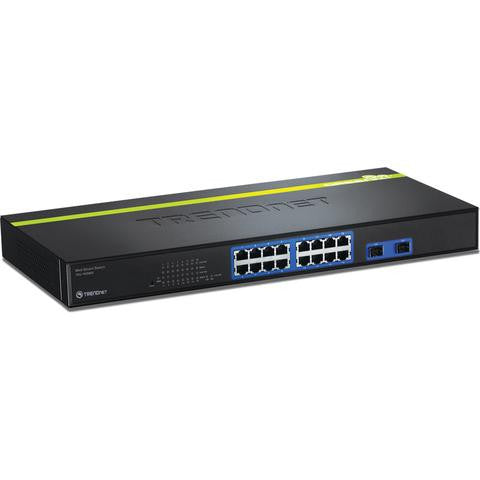

16 Port Gigabit Web Smart Switch

Product Selection Menu

TEG-160WS | 16 Port Gigabit Web Smart Switch with 2 Mini-GBIC Slots - TRENDnet Networking Products

Average ETA for Additional Units  Contact Us
Product Datasheet Download

The 16-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots TEG-160WS delivers a 32Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1 802.1X STP 802.1Q VLAN QoS IGMP snooping Broadcast Storm Control and port Trunking provides a cost effective scalable and secure backbone switch solution for SMB networks.

SNMP support enables the switch to provide valuable status and event information saving system administrators time and resources. Connect a fiber network to the shared mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

  • 16 x 10 / 100 / 1000 Mbps Auto-MDIX RJ-45 ports
  • 2 x 1000Base-SX / LX Mini-GBIC slots (shared with Gigabit ports 15-16)
  • 32 Gbps switching capacity
  • IEEE 802.3x Full Duplex Flow Control and Back Pressure
  • Static Port Trunk
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1X Authentication and SNMP v1
  • Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
  • Store and Forward switching method
  • Front panel diagnostic LEDs
  • Supports Jumbo Frame packets (max size up to 10 Kbytes)
  • Integrated address look-up engine supports up to 8K absolute MAC addresses
  • Supports 512 Kbytes RAM for data buffering
  • Easy configuration via Web browser
  • Standard 19” (1U) rackmount size (rackmount kit included)
Part Number Product Description
TEG-160WS 16 Port Gigabit Web Smart Switch w/ 2 Shared Mini-GBIC Slots
