24 Port 10/100 Web Smart PoE Switch

Product Selection Menu

TPE-224WS | 24 Port 10/100Mbps Web Smart PoE Switch w/ 4 Gigabit Ports and 2 Mini-GBIC Slots - TRENDnet Networking Products

Average ETA for Additional Units  Contact Us
Product Datasheet Download

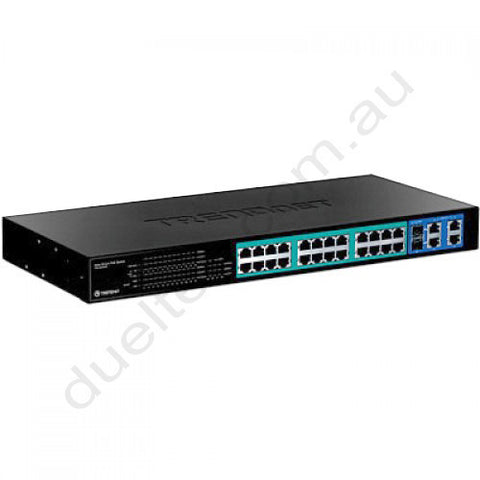

The 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots (model TPE-224WS) delivers a 12.8Gbps switching capacity with Power over Ethernet (PoE) technology and managed layer 2 features at a reduced cost.

Support for SNMP v1 802.1x STP 802.1Q VLAN QoS IGMP snooping Broadcast Storm Control and port Trunking provide a cost effective scalable and secure backbone PoE switch solution for SMB networks.

Power over Ethernet (PoE) technology reduces equipment and installation costs by delivering data and power over existing Ethernet cables. SNMP support enables the switch to provide valuable status and event information saving system administrators time and resources. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

  • IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
  • 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet PoE RJ-45 Ports
  • 4 x 10/100/1000Mbps Auto-Negotiating and Auto-MDIX Gigabit Ports
  • 2 x 1000Base-SX/LX Mini-GBIC Slots for Optional Mini-GBIC Modules
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Supports PoE Power maximum up to 170 watts for all PoE ports
  • Supports PoE Powered Device(PD) classification identify
  • Full Wire-Speed Non-Blocking Reception and Transmission
  • Store and Forward Switching Method
  • 1Mits RAM Data Buffer and 8K entries MAC Address Table
  • Extensive Diagnostic LED's on the Front Panel
  • Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap)
  • Supports 802.1Q VLAN (VID 1 ~ 4094), IGMP Snooping, Trunking and Port Mirroring
  • Port Setting Function, Users can set each Port's Availability, Speed, Duplex Mode, and Flow Control
  • Easy configuration via Web browser
  • Standard 19” (1U) Rack-Mount size (kit included)
Part Number Product Description
TPE-224WS 24 Port 10/100Mbps Web Smart PoE Switch w/ 4 Gigabit Ports and 2 Mini-GBIC Slots
