4x1 Desktop HDMI Matrix Switcher

Product Selection Menu

VS-41H | 4x1 HDMI Matrix Switcher - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

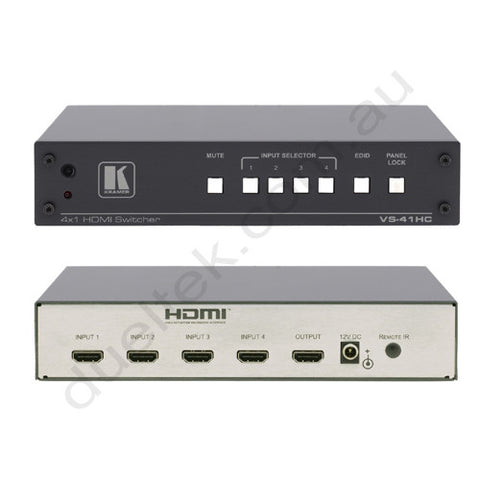

The VS-41HC is a high-performance switcher for HDMI signals. It switches any one of the four inputs to a single output.



Specifications:

  • INPUTS: 4 HDMI connectors.
  • OUTPUT: 1 HDMI connector.
  • BANDWIDTH: 6.75Gbps (2.25Gbps per graphic channel).
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
  • RESOLUTION: 1080p @30bpp.
  • POWER CONSUMPTION: 12V DC, 320mA.
  • CONTROLS: Front panel buttons, IR remote control transmitter.
  • DIMENSIONS: 22cm x 18cm x 4.5cm (8.6” x 7” x 1.8”) W, D, H (1/2 19" 1U).
  • WEIGHT: 1.3kg (2.9lbs) approx.
  • INCLUDED ACCESSORIES: Power supply, IR remote control.
  • OPTIONS: RK−1 19" rack adapter, external remote IR receiver cable.
