907XL | High Performance 40 Watt RMS Power Stereo Amplifier - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

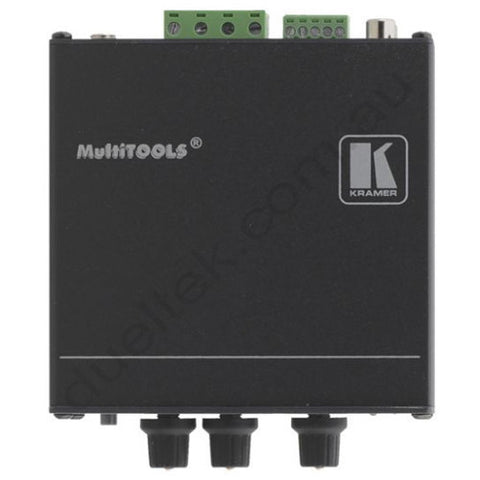

The 907xl is a high performance power amplifier for line level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8 ohm load.

Specifications:

  • INPUT: 1 balanced stereo audio on a terminal block connector, 1 unbalanced stereo audio on RCA connectors.
  • OUTPUT: Speaker output on a terminal block connector.
  • OUTPUT POWER: 40W per channel into 8 Ohms.
  • OUTPUT MUSIC POWER: 150W per channel into 8 Ohms.
  • INPUT SENSITIVITY: 1.2Vrms.
  • AMPLIFIER TYPE: Class D.
  • VOLTAGE GAIN: 36dB (x10).
  • BANDWIDTH (-3DB): 25kHz.
  • S/N RATIO: 66dB.
  • COUPLING: Inputs: AC, Outputs: DC.
  • AUDIO THD + NOISE: 1.2%.
  • AUDIO 2ND HARMONIC: 1%.
  • POWER CONSUMPTION: 24V DC, 2.2A.

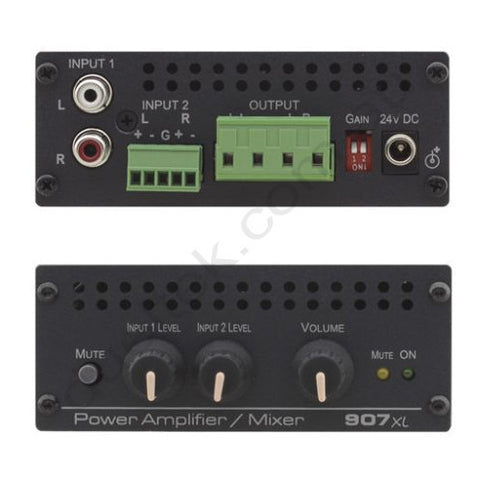

  • CONTROLS: 2 gain DIP switches, mute button, 2 input level knobs, 1 volume knob.
  • OPERATING TEMPERATURE: 0 to +40C (32 to 104F).
  • STORAGE TEMPERATURE: 40 to +70C (40 to 158F).
  • HUMIDITY: 10% to 90%, RHL noncondensing.
  • DIMENSIONS: 10.7cm x 10.4cm x 4.0cm (4.2" x 4.1" x 1.6").
  • WEIGHT: 0.32kg (0.7lbs).
  • ACCESSORIES: Power supply.
  • OPTIONS: RK1 19 rack mount adapter.
