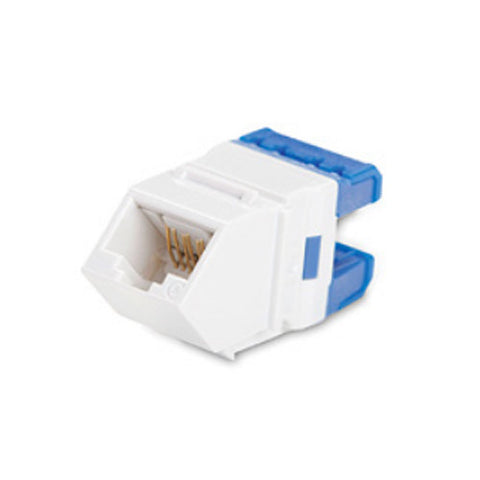

15A06NV008B-WB61 | CAT6 8P8C Unshielded RJ45 Punch-Down Keystone Jack - Angled - AT&T

Average ETA for Additional Units  Contact Us
Product Datasheet Download

AT&T CopperLine Category 6 8P8C Unshielded RJ45 180º Angled Punch-Down Keystone Jacks are designed to the highest standards in the industry.

Specifications:

  • Frequency range: 1-250 MHz
  • Compatible conductors: 22-26 AWG Solid or Stranded
  • Pin-pair assignment: T568A & T568B (Universal)
  • Contacts: 50µ-Inch Gold plating
  • Shield: None
  • Housing: High impact FR compound
  • Standard color: White/Blue or White

Mechanical & Electrical Properties:

  • Orientation: 180º or 90º
  • Termination blocks: 110 IDC
  • Insertion/withdrawal: 750 cycles
  • Cable re-termination: 20 terminations
  • Operating temperature: -20 to +60C at 5-95% RH (non condensing)
  • Ampacity: 1.5 A max.
  • Contact resistance: 20 mOhm max.
  • DC resistance: 0.1 Ohm max.
  • Voltage rating: 75 Vdc max.
  • Insulation resistance: 500 MegaOhm min. @500 Vdc
  • Recommended punch-down tool: AT&T MultiPunch 4-pair hand-tool*

* Compatible Parts:

  • P/N 15A06NV008A compatible with 24-port and 48-port 1U panels
  • P/N 15A06NV008B compatible only with 24-port 2-row 1U panels
  • P/N 15A06NV008C compatible only with 24-port 1U panels
  • P/N 15A06NV008D compatible with 24-port & 48-port 1U panels
    Part Number Product Description
    15A06NV008B-WB61 CAT6 8P8C Unshielded RJ45 Punch-Down Keystone Jack - Angled
