I-USB2-2311i | Icron Ranger 1-Port USB 2.0 over CAT5e, CAT6, CAT6A and CAT7 Compact Powered Extender up to 100M

Average ETA for Additional Units  3-5 Days
Product Datasheet Download

The Icron USB 2.0 Ranger I-USB2-2311 with flexible power extends high-speed USB 2.0 connections up to 100m using CATx (CAT5e, CAT6, CAT6A or CAT7) with the option to power either the LEX (Local Extender) or REX (Remote Extender). This USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

The USB 2.0 Ranger 2311 allows users to extend USB 2.0/1.1 connections up to 100 Metres (330 Feet) over a single CAT5e, CAT6, CAT6A or CAT7 cable.

This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play. No software drivers required and it works with all major operating systems: Windows®, MacOS, and Linux®.

Additionally, the Icron ExtremeUSB® based extension system is ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Icron Ranger 2311 Application Diagram

Applications:

  • Industrial Control
  • Interactive white board
  • Keyboard and mouse extension
  • Sensor/data acquisition
  • Webcam extension

Features:

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1 Amp to USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Two year warranty
  • ExtremeUSB® suite of features:
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, MacOS, and Linux®

Specifications:

  • RANGE
    • Direct connect up to 100m (330 ft) over CAT 5e/6/7
  • SPEEDS
    • USB 2.0: up to 480 Mbps
    • USB 1.1: up to 12 Mbps
  • POWER
    • Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX.

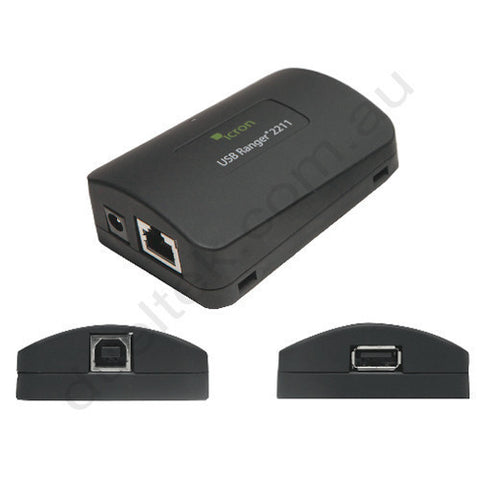

  • LEX (Local Extender)
    • USB Connector: 1 x USB Type B Receptacle
    • Link Connector: 1 x RJ45
    • Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
    • Mounting: Slots for cable ties
    • Enclosure Material: Black ABS with rubberized coating
  • REX (Remote Extender)
    • USB Connector: 1 x USB Type A Receptacle
    • Link Connector: 1 x RJ45
    • Available Current: up to 1 Amp to USB port
    • Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
    • Mounting: Slots for cable ties
    • Enclosure Material: Black ABS with rubberized coating
  • ENVIRONMENTAL
    • Operating Temperature: 0C to 50C (32F to 122F)
    • Storage Temperature: -20C to 70C (-4F to 158F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing
  • COMPLIANCE
    • EMC: FCC (Class A), CE (Class A)
    • Environmental: RoHS2, REACH, Conflict Minerals
    • Safety: Flammability V-0
  • SUPPORT
    • Warranty: 2-year

What's in the Box:

The USB 2.0 Ranger® 2311 extender system with flexible power includes:

  • Local Extender (LEX) module
  • Remote Extender (REX) module
  • USB Cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
