HDMI RS232 IR over HDBaseT TP Transmitter

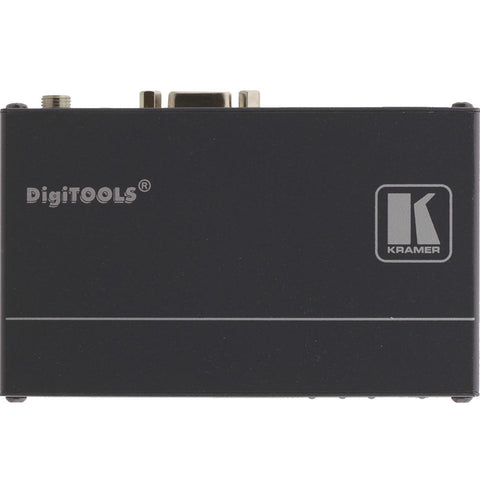

TP-580T | HDMI, Bidirectional RS−232 & IR over HDBaseT Twisted Pair Transmitter
 |
Average ETA for Additional Units | 1-2 Days |
 |
Product Datasheet | Download |
The TP-580T is a high performance, HDBaseT twisted pair transmitter for HDMI, bi-directional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.
Specifications:
- INPUTS: 1 HDMI connector.
- OUTPUTS: 1 HDBaseT twisted pair RJ-45 connector.
- PORTS: 1 IR on a 3.5mm mini jack, 1 RS-232 on a 9 pin D-sub connector.
- BANDWIDTH: 10.2Gbps (3.4Gbps per graphic channel).
- RS-232 BAUD RATE: 115200.
- COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
- POWER CONSUMPTION: 12V DC,275mA.
- OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F).
- STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
- HUMIDITY: 10% to 90%, RHL non−condensing.
- DIMENSIONS: 18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H.
- WEIGHT: 0.6kg (1.4lbs).
- ACCESSORIES: Power supply.
- OPTIONS: RK−T2B 19" rack mount.
