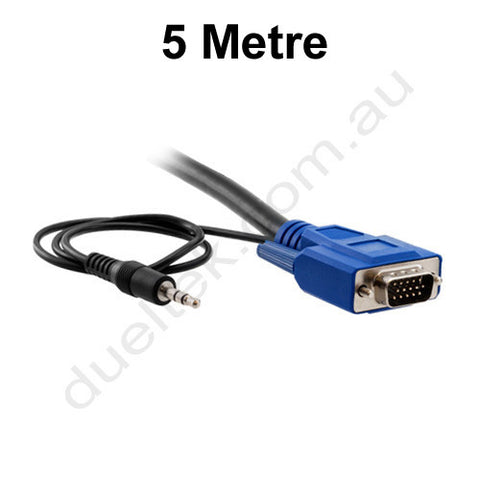

VGAA | VGA HD15 with Integrated  3.5mm Stereo Audio Cable - Male to Male

Average ETA for Additional Units Contact Us
Product Datasheet Download

These VGA HD15 cables with moulded connectors are ideal for any AV application.

Designed to connect PCs/Laptops to add-on peripherals such as a monitors or projectors and a set of speakers either directly or via an AV wall plate.

Made to UL standard with 3 x Coaxial + 9 Control wire cable to suit UXGA Super High Resolution.

Integrated 3.5mm Stereo Audio connector is built in at both ends on short breakout cables. The VGA's Pin 9 is through connected.

  • 3 Coaxial + 9 Control Wire
  • Foil and Braid Shielded
  • Cable Colour: Black
  • Moulding Colour: Blue
  • Nickel Plated Connectors
  • Jacket: PVC
  • Outer Diameter: 9mm
  • Designed with strain relief mould
  • Thumb screws with screwdriver slot for easy installation
  • Video Connectors: VGA 15 Pin Male HD15 at each end
  • Audio Connectors: 3.5mm Stereo Jacks at each end
Part Number Product Description
VGAA-02-MM 2M VGA (3+9) with Stereo Audio, 9mm OD Cable M-M with 60cm audio lead one end & 30cm on the other
VGAA-03-MM 3M VGA (3+9) with Stereo Audio, 9mm OD Cable M-M with 60cm audio lead one end & 30cm on the other
VGAA-05-MM 5M VGA (3+9) with Stereo Audio, 9mm OD Cable M-M with 60cm audio lead one end & 30cm on the other
VGAA-10-MM-L 10M VGA (3+9) with Stereo Audio, 9mm OD Cable M-M with 60cm audio lead one end & 30cm on the other
