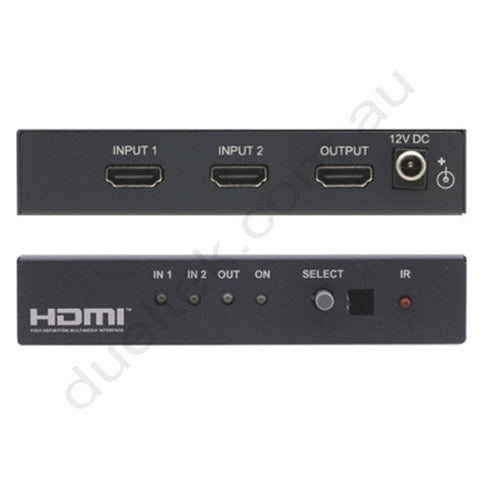

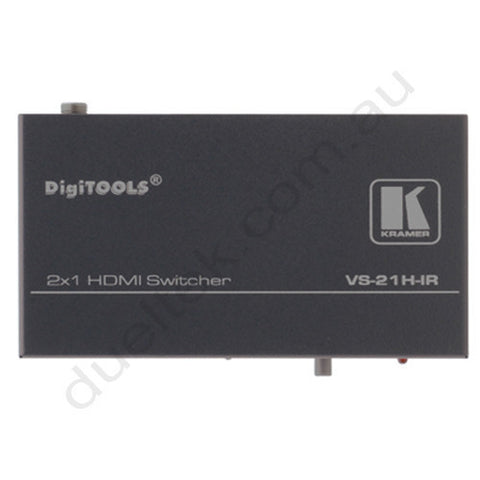

2x1 HDMI Switcher with IR Remote

Product Selection Menu

VS-21H-IR | 2x1 HDMI Digital Video and Audio Switcher - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

The VS21HIR is a high performance switcher for HDMI signals. It reclocks, equalizes and switches either of two inputs to a single HDMI output.

Specifications:

  • INPUTS: 2 HDMI connectors.
  • OUTPUT: 1 HDMI connector.
  • BANDWIDTH: 6.75Gbps (2.25Gbps per graphic channel).
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
  • CONTROLS: Input select button, IR remote control.
  • INDICATOR LEDS: IN 1, IN 2, OUT, and ON LEDs.
  • POWER CONSUMPTION: 12V DC, 150mA.
  • OPERATING TEMPERATURE: 0 to +55C (32 to 131F).
  • STORAGE TEMPERATURE: 45 to +72C (49 to 162F).
  • HUMIDITY: 10% to 90%, RHL non-condensing.
  • DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08"), W, D, H.
  • WEIGHT: 0.3kg (0.66lbs) approx.
  • ACCESSORIES: Power supply, bracket installation kit, IR transmitter.
  • OPTIONS: RK3T 19" rack adapter.
