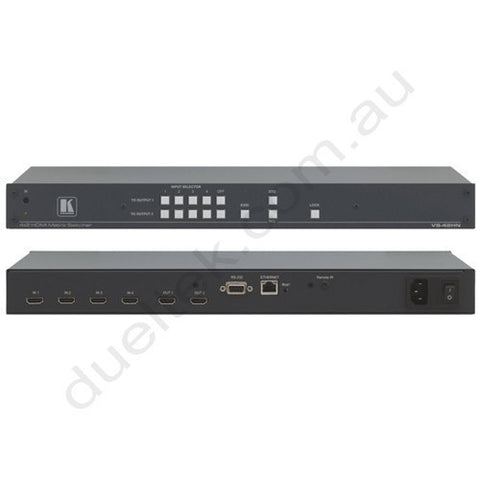

VS-42HN | 4x2 HDCP Compliant HDMI Digital Video Matrix Switcher - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

The VS42HN is a high performance matrix switcher for HDMI signals. It re-clocks and equalizes the signal and can route any input to any or all outputs simultaneously.

  • Maximum Data Rate  - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDMI Support  - Deep Color, x.v.Color, up to 7.1 Uncompressed Audio Channels.
  • 3D Pass-Through.
  • HDCP Compliant.
  • Fast Switching Technology  - Reduces switching delay between DVI/HDMI sources.
  • Kramer Equalization & re-Klocking Technology  - Rebuilds the digital signal to travel longer distances.
  • I-EDIDPro Kramer Intelligent EDID Processing  - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Support for Protocol 2000 and Protocol 3000.
  • Front Panel Lockout.
  • Output Disconnect  - Each output.
  • Memory Location  - Stores one preset to be recalled and executed when needed.
  • Flexible Control Options  - Front panel, IR Remote, RS-232 (K-Router Windows-based software is included) & Ethernet (Windows-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Worldwide Power Supply  - 100-240V AC.
  • Standard 19 Rack Mount Size  - 1U. Rack "ears" included.

Specifications:

  • INPUT: 4 HDMI connectors.
  • OUTPUTS: 2 HDMI connectors.
  • BANDWIDTH: Supports up to 1.65Gbps per graphic channel.
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI 1.1 and HDCP.
  • RESOLUTION: Up to UXGA; 1080p.
  • POWER SOURCE: 90-240V AC; 50/60Hz, 10VA.
  • CONTROLS: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
  • WEIGHT: 2.5kg (5.5lbs) approx.
  • ACCESSORIES: Power cord, IR transmitter.
