VS-81H | 8x1 HDMI Switcher - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

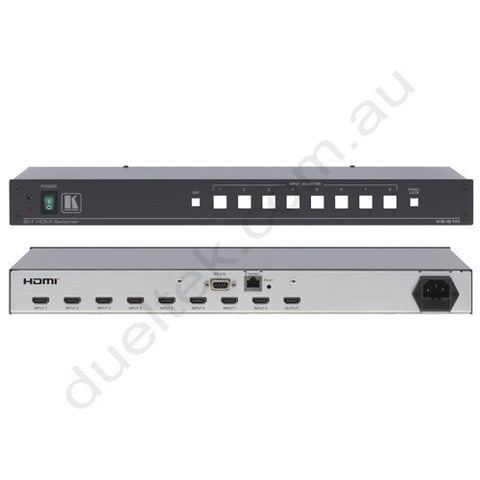

The VS81H is a high performance switcher for HDMI signals. It reclocks and equalizes the signal and switches one of the 8 inputs to a single HDMI output.

Specifications:

  • INPUT: 8 HDMI Connectors.
  • OUTPUT: 1 HDMI Connector.
  • BANDWIDTH: Supports up to 6.75Gbps (2.25Gbps bandwidth per graphic channel).
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
  • RESOLUTION: Up to UXGA; 1080p, deep color.
  • POWER CONSUMPTION: 100240V AC, 50/60Hz, 12VA.
  • CONTROLS: Front panel buttons, infrared remote control port, RS232, Ethernet.
  • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
  • WEIGHT: 2.5kg (5.5lbs) approx.
  • ACCESSORIES: Power cord, RCIR3 remote control transmitter.
