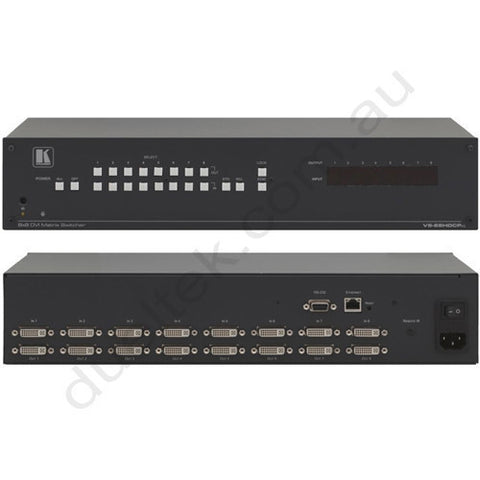

VS-88HDCPXL | 8x8 HDCP Compliant DVI/HDMI Digital Video Matrix Switcher - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

The VS88HDCPxl is a high performance matrix switcher for DVI and HDMI signals on a DVID connector. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

  • Max. Data Rate  - 6.75Gbps (2.25Gbps per graphic channel).
  • HDCP Compatible.
  • HDTV Compatible.
  • HDMI Support  - Deep Color, x.v.Color, 3D Pass-Through, HDMI Compressed Audio Channels.
  • Fast Switching Technology  - Reduces switching delay between DVI/HDMI sources.
  • EDID PassThru  - Passes EDID signals from source to display.
  • Output Disconnect  - For each output.
  • Front Panel Control Lockout.
  • Memory Locations  - Stores multiple switches as presets to be recalled and executed when needed.
  • Flexible Control Options  - Front panel, IR remote, RS-232 (K-Router Windows-based software is included), Ethernet (Windows-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Worldwide Power Supply  - 100-240V AC.
  • Standard 19 Rack Mount Size  - 2U. Rack "ears" included.

Specifications:

  • INPUTS: 8 DVI connectors.
  • OUTPUTS: 8 DVI connectors.
  • BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel.
  • COMPLIANCE WITH STANDARDS: Supports DVI and HDCP.
  • MAX RESOLUTION: Up to UXGA;1080p.
  • POWER CONSUMPTION: 100240VAC; 50/60Hz, 38VA.
  • CONTROLS: Front panel buttons, infrared remote control transmitter, RS 232, Ethernet.
  • OPERATING TEMPERATURE: 0 to +55C (32 to 131F).
  • STORAGE TEMPERATURE: 45 to +72C (49 to 162F).
  • HUMIDITY: 10% to 90%, RHL noncondensing.
  • DIMENSIONS: 19" x 7" x 2U W, D, H.
  • WEIGHT: 2.5kg (5.5lbs) approx.
  • ACCESSORIES: Power cord, IR transmitter, rack ears.
  • OPTIONS: External remote IR receiver cable.
